输送沥青（沥青泵）选什么泵好-远东高粘度转子泵

沥青是由不同分子量的碳氢化合物及其非金属衍生物组成的黑褐色复杂混合物，是高黏度有机液体的一种，呈液态，表面呈黑色，可溶于二硫化碳。沥青是一种防水防潮和防腐的有机胶凝材料。沥青主要可以分为煤焦沥青、石油沥青和沥青三种：其中，煤焦沥青是炼焦的副产品。石油沥青是原油蒸馏后的残渣。沥青则是储藏在地下，有的形成矿层或在地壳表面堆积。沥青主要用于涂料、塑料、橡胶等工业以及铺筑路面等。Asphalt is composed of different molecular weight hydrocarbons and non metal derivatives of dark brown complex mixtures, is a kind of organic high viscosity liquid, a liquid surface is black, soluble in carbon disulfide. Asphalt is a kind of waterproof, moisture proof and anticorrosive organic cementitious material. Asphalt can be divided into three kinds of coal tar pitch, petroleum asphalt and natural asphalt: the coal tar pitch is a byproduct of coking. Petroleum asphalt is a crude oil distillation residue. It is in the underground storage of natural asphalt, some form of ore or piled up on the surface of the crust. The asphalt is mainly used for coatings, plastics, rubber and other industrial and paved roads etc..

输送沥青必不可少的沥青泵的选择一定要慎重。通常沥青的粘度较大，考虑四季都是交替使用，所以选用沥青泵都需要配带保温装置，以便保证不凝固常温下正常输送。无论哪种类型的沥青保温泵都是采用泵体设有空心夹套，通过蒸汽、热水、导热油等对输送的液体进行加热、保温的功能，当输送粘度较大时应采用减速机或皮带轮等传动方式降低泵的转速，达到理想的效果。Delivery of asphalt essential to the choice of asphalt pump must be careful. The viscosity of the asphalt is usually larger, consider the four seasons are used alternately, so the use of asphalt pumps are equipped with a heat insulation device, so as to ensure the normal delivery of non solidified under normal temperature. No matter what type of asphalt heat pump is the pump body is provided with a hollow jacket, by steam, hot water, heat conduction oil for delivery of liquid heating, thermal insulation function, when conveying viscosity should be used gear or belt drive pump to reduce speed, to achieve the ideal effect.

远东NYP高粘度泵是输送沥青的佳转子泵，高粘度泵是内齿轮泵回转式正位移泵,液体流动由两个齿轮产生,主动齿轮和从动轮,内齿轮嵌在外齿轮里面,由一个月牙挡板隔开.当齿轮转动时,液体被吸入到两个齿轮和月牙挡板围成的空间里,当齿轮啮合时, 液体受压被排除泵外. 因此, 液体流动平稳 , 并且容量大, 结构紧凑.Far east NYP high viscosity pump is conveying asphalt optimum rotor pump, high viscosity pump is in gear rotary pump is displacement pump, liquid flow generated by the two gears, driving gear and driven wheel, the gear block in the external gear, separated by a crescent plate. When the gear rotates, fluid is drawn into the two gears and crescent baffle enclosed space, when the gear meshing, the pressurized liquid were excluded from the pump. Therefore, the smooth flow of the liquid, and large capacity, compact structure.

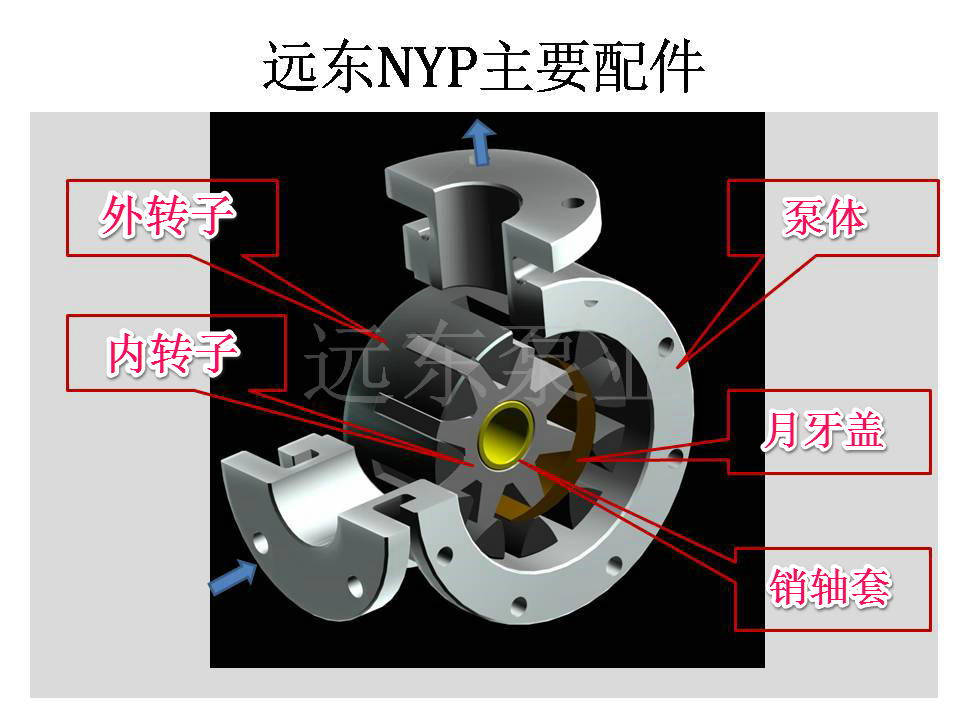

远东NYP高粘度转子泵主要配件：Far east NYP high viscosity rotor pump main parts:

NYP高粘度泵该泵的泵体设有空心夹层，并设有进出口法兰，可用于导热油、蒸气、热水等媒体对输送的液体和泵进行加热保温及冷却。本型泵的主要过流部位均设有空心夹层,并设有可供通蒸气,热/热水,导热油等对输送液体和泵进行加热,保温等功能,当输送粘度较大时应采用减速机,调速电机或皮带轮等传动方式,降低泵的转速.NYP high viscosity pump, the pump body is provided with a hollow interlayer, and a import and export flange, which can be used for heat transfer oil, steam, hot water and other media to transport the liquid and pump for heating insulation and cooling. This type of pump mainly flow area are equipped with hollow interlayer, and a available through steam, hot / cold water, heat conduction oil liquid and pump for conveying heating, insulation and other functions, when conveying viscosity larger should use reducer, motor or pulley transmission mode, reduce the pump speed.

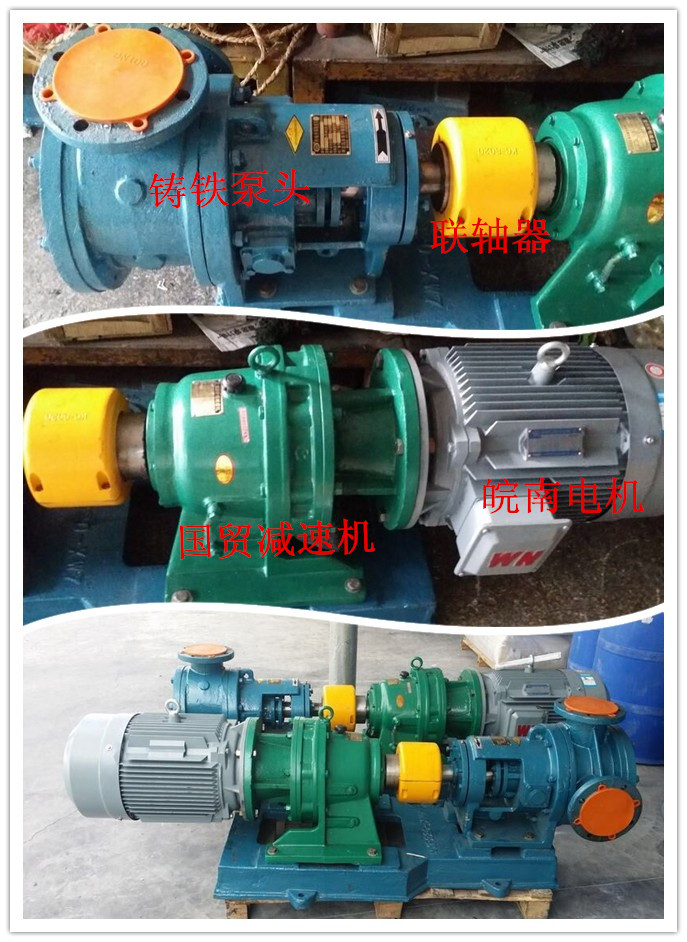

远东NYP高粘度沥青泵减速整机图：Far east NYP high viscosity asphalt pump deceleration machine figure:

选择远东高粘度泵的理由：The reason for choosing the Far East high viscosity pump:

远东沥青泵典型用户案例：Typical users of the Far East asphalt pump:

潍坊天元防水材料有限公司Tianyuan Weifang waterproof material Co., Ltd.

沥青输送泵型号NYP24-RU-T2 -W11高粘度泵配YCJ100-4KW,流量3m3/h,压力0.6Mpa。Asphalt transport pump model -W11 NYP24-RU-T2 high viscosity pump with YCJ100-4KW, flow 3m3/h, pressure 0.6Mpa

抽沥青泵型号NYP24-RU-T2 -W11高粘度泵配YCJ100-4KW,流量3m3/h,压力0.6Mpa。Pump model -W11 NYP24-RU-T2 high viscosity pump with YCJ100-4KW, flow 3m3/h, pressure 0.6Mpa

广州禹泰防水科技有限公司Guangzhou Yu Tai Waterproof Technology Co. Ltd.

抽沥青泵型号NYP320-RU-T2 -W11高粘度泵配CZR107-37KW,流量50m3/h,压力0.6Mpa。Pump model -W11 NYP320-RU-T2 high viscosity pump with CZR107-37KW, flow 50m3/h, pressure 0.6Mpa

抽沥青泵型号NYP220B-RU-T1 -W11高粘度泵配R97-18.5KW,流量30m3/h,压力0.6Mpa。Pump model -W11 NYP220B-RU-T1 high viscosity pump with R97-18.5KW, flow 30m3/h, pressure 0.6Mpa

用户现场拍摄：User site shooting:

远东高粘度泵特点

1、国内采用美国威肯技术生产。

2、可根据客户工艺要求调整泵进出口方向。平进平出、左进上出、右进上出、上进右出、上进左出

3、根据输送介质不同可采用多种材料组合。满足不同工况需求。

The characteristics of the Far East high viscosity pump

1, the first use of the technology to produce wiken.

2, according to the customer process requirements to adjust the direction of pump import and export. Flat out into the flat, the left upper and right upper, right, left out upward progress

3, according to the transmission medium can use a variety of different materials. Meet the needs of different conditions.
