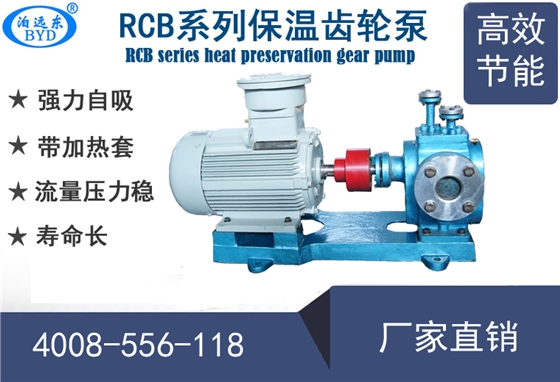

泊头远东RCB保温齿轮泵型号及参数表
| 型号 | 吸入以及排出管口径mm | 规定流量 | 规定压力Mpa | 吸上高度m | 电机功率KW | 转速r/min | 电机型号 |
| m3/n | L/min |
| RCB1/0.6 | ф25 | 1 | 18.3 | 0.6 | 5 | 1.1 | 910 | Y90L-6 |
| RCB1.5/0.6 | ф25 | 1.5 | 25 | 0.6 | 5 | 1.5 | 1400 | Y90L-4 |
| RCB2.2/0.6 | ф25 | 2.2 | 36 | 0.6 | 5 | 1.5 | 910 | Y100L-6 |
| RCB3.3/0.6 | ф25 | 3.3 | 55 | 0.6 | 5 | 2.2 | 1400 | Y100L-4 |
| RCB3/0.6 | ф40 | 3 | 50 | 0.6 | 5 | 1.5 | 910 | Y100-4 |
| RCB5/0.6 | ф40 | 5 | 83.3 | 0.6 | 5 | 2.2 | 1420 | Y100L-6 |
| RCB6/0.6 | ф50 | 6 | 100 | 0.6 | 5 | 2.2 | 710 | Y100L-4 |
| RCB8/0.6 | ф50 | 8 | 135 | 0.6 | 5 | 3 | 960 | Y132S-8 |
| RCB12/0.6 | ф50 | 12 | 200 | 0.6 | 5 | 5.5 | 1440 | Y132S-6 |
| RCB18/0.6 | ф65 | 18 | 300 | 0.6 | 5 | 7.5 | 960 | Y160M-6 |
| RCB29/0.6 | ф65 | 29 | 483 | 0.6 | 5 | 11 | 1460 | Y160M-4 |
| RCB38/0.28 | ф100 | 38 | 633 | 0.28 | 5 | 15 | 970 | Y180L-6 |
| RCB58/0.28 | ф100 | 58 | 960 | 0.28 | 5 | 22 | 1470 | Y180L-4 |
| RCB72/0.6 | ф150 | 72 | 1200 | 0.6 | 5 | 37 | 740 | Y280S-8 |
| RCB96/0.6 | ф150 | 96 | 1600 | 0.6 | 5 | 45 | 980 | Y280S-6 |
